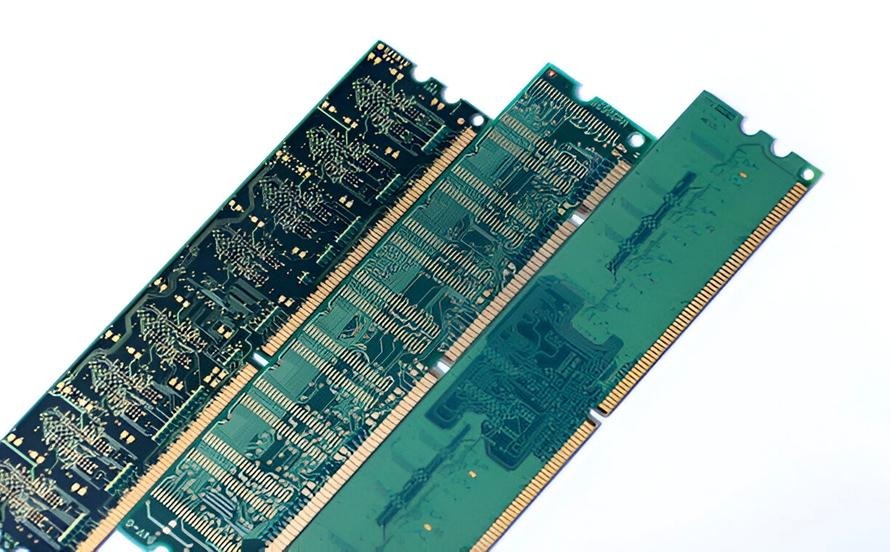

As electronic devices become increasingly compact and powerful, printed circuit board (PCB) technology has evolved to support greater circuit density, faster signal transmission, and improved electrical performance. Industries such as telecommunications, aerospace, automotive electronics, medical devices, industrial automation, and consumer electronics all require PCBs capable of accommodating complex layouts within limited space. One of the key technologies enabling these advanced designs is the use of Blind and Buried Vias.
Unlike conventional through-hole vias that extend from the top to the bottom layer of a PCB, blind and buried vias provide more efficient interconnections between selected layers. This advanced via technology allows engineers to maximize routing space, improve signal integrity, and create compact multilayer circuit boards without increasing their physical size. As a result, blind and buried vias have become a standard feature in High-Density Interconnect (HDI) PCBs and other high-performance electronic products.
However, manufacturing these specialized vias requires advanced equipment, precise process control, and extensive engineering expertise. Working with an experienced Blind and Buried Vias manufacturer helps ensure reliable electrical connections, consistent quality, and long-term product performance.
This article explores blind and buried via technology, its manufacturing process, advantages, applications, and the importance of selecting the right manufacturing partner.
What Are Blind and Buried Vias?
Blind and Buried Vias are specialized interconnection structures used in multilayer printed circuit boards to establish electrical connections between selected PCB layers without passing through the entire board thickness.
A blind via connects one external layer to one or more internal layers but does not extend completely through the PCB. Since it occupies only a portion of the board thickness, it leaves additional routing space available on the opposite outer layer.
A buried via, on the other hand, connects internal PCB layers only and remains completely enclosed within the board after lamination. Because buried vias are hidden inside the PCB structure, they free both outer surfaces for component placement and signal routing.
Together, these advanced via structures enable designers to create highly compact circuit layouts while maintaining excellent electrical performance and mechanical reliability.
Why Blind and Buried Vias Are Important
As integrated circuits continue to increase in pin count and complexity, routing all electrical connections using traditional through-hole vias becomes increasingly difficult. Through-hole vias occupy valuable routing space on every PCB layer, limiting design flexibility and increasing board size.
Blind and buried vias solve this challenge by connecting only the layers that require electrical communication. This significantly improves routing efficiency and allows designers to place more components within the same PCB dimensions.
Reducing unnecessary via penetration also improves signal integrity by shortening electrical pathways and minimizing parasitic capacitance. High-speed digital circuits and RF applications particularly benefit from these improvements because signal quality directly affects overall system performance.
Additionally, advanced via technology supports higher component density, allowing manufacturers to produce lighter, thinner, and more compact electronic products.
The Manufacturing Process of Blind and Buried Vias
Manufacturing PCBs with blind and buried vias requires more advanced fabrication techniques than conventional multilayer PCB production. The process begins with careful engineering analysis, during which designers determine the optimal layer stack-up, via locations, drilling methods, and lamination sequence.
Internal circuit layers are first fabricated using photolithography and chemical etching before buried vias are drilled and copper plated. These partially completed layers are laminated together to create the internal PCB structure.
Blind vias are typically formed using controlled-depth mechanical drilling or laser drilling after the initial lamination process. Laser drilling is widely used because it offers exceptional precision for producing small via diameters while minimizing damage to surrounding materials.
Following drilling, copper plating establishes reliable electrical connections between the designated layers. Additional lamination cycles may be required for complex multilayer boards incorporating multiple blind and buried via structures.
The completed PCB then undergoes solder mask application, surface finishing, electrical testing, and comprehensive inspection before shipment.
Because via quality directly influences PCB reliability, manufacturers maintain strict process control throughout every production stage.
Advantages of Blind and Buried Vias
One of the most significant advantages of blind and buried vias is improved routing density. Since these vias connect only the required layers, they preserve valuable routing space that would otherwise be occupied by traditional through-hole vias.
This increased routing efficiency allows engineers to design smaller circuit boards while accommodating more electronic components and complex integrated circuits.
Signal integrity is also enhanced because shorter via structures reduce signal reflections, electromagnetic interference, and transmission delays. These characteristics are especially important for high-speed communication systems and advanced computing applications.
Mechanical reliability benefits as well. Properly manufactured blind and buried vias reduce unnecessary drilling throughout the PCB, preserving structural integrity while supporting multilayer construction.
Although manufacturing costs may be higher than standard through-hole technology, the improvements in miniaturization, electrical performance, and overall product capability often justify the investment.
Applications of Blind and Buried Vias
Blind and buried vias are widely used in advanced electronic products where space optimization and electrical performance are essential. Smartphones, tablets, laptops, wearable devices, and other portable consumer electronics frequently incorporate this technology to achieve compact designs with high component density.
Telecommunications equipment, including networking hardware, communication modules, and 5G infrastructure, relies on blind and buried vias to support high-speed signal routing and controlled impedance requirements.
Automotive electronics use advanced via structures in electric vehicle control systems, battery management systems, infotainment platforms, radar sensors, and advanced driver assistance systems where compact multilayer PCB designs are critical.
Medical devices such as diagnostic instruments, imaging systems, portable monitoring equipment, and surgical electronics benefit from the increased circuit density and reliability provided by blind and buried via technology.
Industrial automation, aerospace electronics, defense systems, robotics, artificial intelligence hardware, and cloud computing equipment further demonstrate the broad range of applications supported by advanced via structures.
Why Choosing an Experienced Blind and Buried Vias Manufacturer Matters
Producing PCBs with blind and buried vias requires significantly greater technical expertise than conventional multilayer PCB fabrication. An experienced Blind and Buried Vias manufacturer understands the precise drilling, copper plating, sequential lamination, and registration control necessary to produce reliable multilayer interconnections.
Professional manufacturers perform Design for Manufacturability (DFM) analysis before production begins, evaluating stack-up configurations, via structures, material selection, and manufacturing tolerances to optimize both performance and production efficiency.
Modern manufacturing facilities equipped with laser drilling systems, automated optical inspection, X-ray analysis, precision plating equipment, and intelligent process monitoring can consistently produce complex multilayer PCBs with exceptional accuracy.
Working with an experienced manufacturer helps reduce production risks, improve manufacturing yield, and ensure long-term PCB reliability in demanding applications.
Quality Assurance in Blind and Buried Vias Manufacturing
Quality assurance is one of the most critical aspects of manufacturing advanced via structures because internal defects cannot be identified through visual inspection alone. Manufacturers carefully inspect incoming materials before monitoring every production stage for dimensional accuracy and process consistency.
Automated Optical Inspection verifies circuit patterns before lamination, while X-ray inspection evaluates buried via structures, blind vias, internal copper plating, and multilayer alignment after fabrication.
Electrical testing confirms continuity, insulation resistance, and proper electrical connections throughout the PCB. Additional reliability evaluations often include thermal cycling, mechanical stress testing, solderability verification, and environmental testing to ensure long-term durability.
Leading manufacturers maintain internationally recognized certifications such as ISO 9001, IPC standards, UL certification, IATF 16949 for automotive electronics, ISO 13485 for medical devices, and RoHS compliance, demonstrating their commitment to producing reliable high-performance circuit boards.
Conclusion
Blind and Buried Vias have become an essential technology in modern multilayer PCB design by enabling higher routing density, improved signal integrity, greater component integration, and more compact electronic products. Their ability to optimize internal PCB space makes them indispensable for industries such as telecommunications, automotive electronics, aerospace, medical devices, industrial automation, and consumer electronics.
Choosing an experienced Blind and Buried Vias manufacturer ensures access to advanced manufacturing technologies, precision engineering, and comprehensive quality assurance. As electronic systems continue to become more sophisticated and compact, blind and buried via technology will remain a critical foundation for developing reliable, high-performance printed circuit boards that meet the demands of next-generation electronic products.
